Dell Dock Compatibility Guide — WD19, WD22 & Universal Docks

Dell’s docking ecosystem is one of the most mature in the industry, but Dell dock compatibility isn’t always straightforward. With multiple USB-C, Thunderbolt 3 and Thunderbolt 4 options available, choosing the right dock for your Dell laptop requires understanding which models support which standards — and whether older docks work with newer machines.

This guide breaks down every current and recent Dell dock, explains which laptops they support, and covers charging wattage, multi-monitor setup and compatibility with non-Dell devices.

Dell Dock Lineup: Specifications & Overview

Dell makes six main docking solutions for modern laptops. Each targets a different use case:

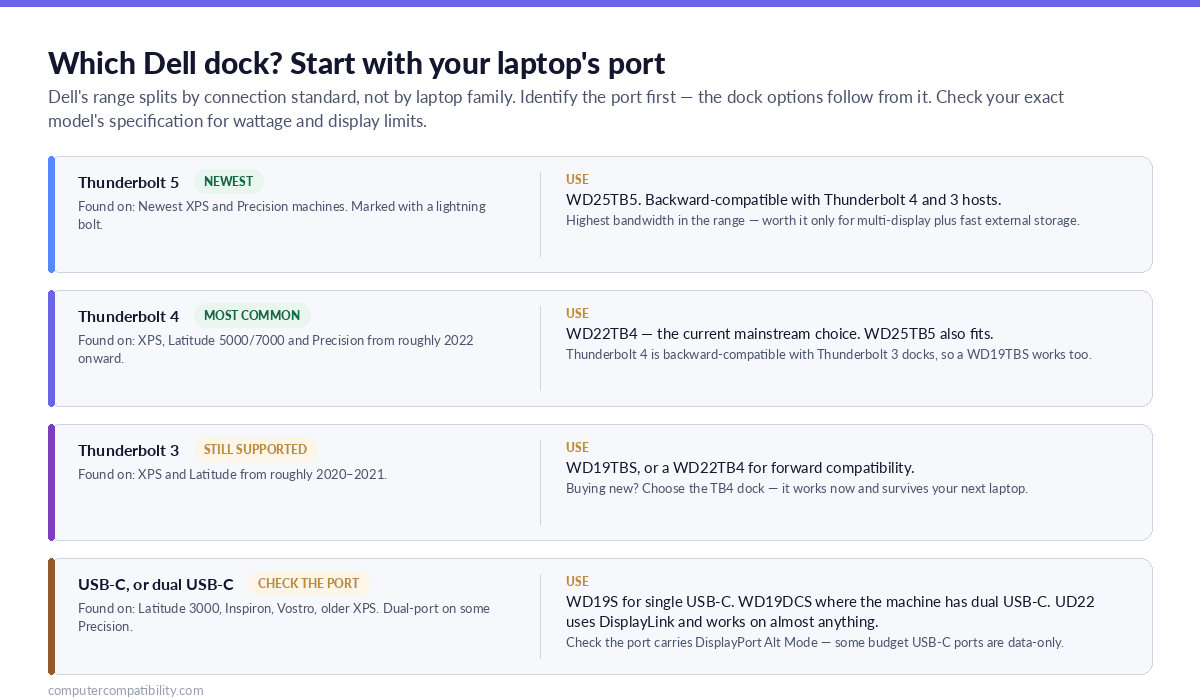

Which Dell Dock Works with Which Laptop?

The primary factor determining dock compatibility is your laptop’s port type. Every modern Dell laptop has at least one USB-C or Thunderbolt port, but the standard varies by series and generation.

XPS (13, 15, 17) Compatibility

XPS 13/15/17 (2022+) — Thunderbolt 4. Use WD22TB4 (recommended) or WD25TB5 (future-proof). WD19TBS also works but is last-generation.

XPS 13/15 (2020–2021) — Thunderbolt 3. Use WD19TBS or WD22TB4 (TB4 is backward-compatible with TB3).

XPS 13 9300 and earlier — USB-C only. Use WD19S (USB-C universal dock).

Latitude Compatibility

Latitude 5000/7000 series (2023+) — Thunderbolt 4. Use WD22TB4 or WD25TB5.

Latitude 5000/7000 series (2020–2022) — Mixed: some have Thunderbolt 3, some have USB-C only. Check your specific model in Dell’s spec sheet. WD19TBS or WD19S will work universally.

Latitude 3000 series — Typically USB-C only. Use WD19S.

Precision Workstation Compatibility

Precision 3000/5000/7000 (2022+) — Thunderbolt 4 and/or Thunderbolt 3. Use WD22TB4 (standard) or WD25TB5 (if you have TB5).

Precision 3550/5550/7550 and newer — Support both Thunderbolt 3 and optional dual USB-C. If your machine has dual USB-C, you can use WD19DCS (210W, optimal for power-hungry applications). Otherwise WD19TBS or WD22TB4.

Inspiron & Vostro Compatibility

Inspiron/Vostro (2022+) — Varies. Check for Thunderbolt 4 (use WD22TB4) or USB-C (use WD19S).

Budget models — Often USB-C only. WD19S is the best match.

Dell Dock Charging Wattage: Power Delivery Explained

Not all Dell docks deliver the same power. For thin-and-light laptops (XPS, Latitude), 130W is adequate. For workstations running dual monitors and GPU-accelerated software, you may need more.

Rule of thumb: If your laptop charges via USB-C and shipped with a 130W+ charger, a 130W dock will keep it charged during use. If your spec sheet lists a 240W power supply, the dock alone won’t charge it under full load — you may need to use the laptop’s native charger for high-demand workloads.

Can You Use Dell Docks with Non-Dell Laptops?

Yes — Dell docks are fully compatible with any laptop that supports the same standard.

WD19S (USB-C): Works with any USB-C laptop from any brand — Apple MacBook, Lenovo ThinkPad, HP Elite, ASUS ZenBook, etc. 130W power delivery is standard across most ultrabooks.

WD19TBS (Thunderbolt 3): Works with any TB3 Mac or Windows laptop. This is Universal TB3 dock hardware.

WD22TB4 (Thunderbolt 4): Works with any TB4 laptop — Apple, Lenovo, ASUS, HP, etc. TB4 is fully backward-compatible with TB3 devices.

WD25TB5 (Thunderbolt 5): Works with any TB5 or TB4 laptop (backward-compatible). Currently limited to newest Apple and some Windows systems.

Limitation: Some third-party laptops may not recognise Dell’s proprietary power profiles. Charging may work but at reduced wattage. Always check your laptop’s USB-C power specs before pairing with a dock.

Comparing Dell Docks to Third-Party Alternatives

Dell docks are well-engineered and reliable, but they’re not the only option. Here’s how they compare to popular alternatives:

For Dell laptop owners, the WD22TB4 remains the best value: native driver support, reliable firmware, and tight integration with Dell Power Manager for battery health. Third-party options are useful if you need extra Thunderbolt 4 bandwidth for external GPU or storage, or if you’re connecting multiple brands of laptop.

Setting Up Your Dell Dock: Driver & Firmware Updates

Once you’ve chosen your dock, setup is straightforward but a few steps ensure optimal performance:

1. Connect the Dock

Plug the Thunderbolt, USB-C or dual USB-C cable into your laptop. Windows will auto-detect the dock and install basic drivers.

2. Install Dell Dock Firmware & Drivers

Visit Dell’s support site and download the latest firmware for your dock model (e.g. WD22TB4). Firmware updates add USB device support, power management improvements, and display compatibility fixes. Update via Dell’s firmware tool (usually a small Windows utility).

3. Configure Display Outputs

For dual 4K monitors: Connect both to the dock’s DisplayPort/HDMI ports. Your BIOS may default to docking mode — adjust display settings in Windows → Settings → Display to extend or mirror.

For USB-C multi-display (UD22): The dock uses DisplayLink, which requires software rendering. Download the DisplayLink driver from the Synaptics website. Your extra displays will appear as virtual displays within Windows once drivers load.

4. Optimise Power Management

Download Dell Power Manager (free from Dell’s website) to monitor dock power delivery and manage battery charging thresholds. This is especially useful on Precision workstations where sustained 130W+ power draw matters.

5. Test Peripherals

Connect USB devices (keyboard, mouse, external drives) to the dock’s USB 3.1 ports. Allow Windows to install any device-specific drivers. Dell docks are plug-and-play for most peripherals, but some older printers or scanners may need manual driver installation.

Frequently Asked Questions

Can I use a WD19TBS dock with a new WD22TB4 laptop?

Yes. WD19TBS is Thunderbolt 3, and newer WD22TB4 laptops have Thunderbolt 4, which is backward-compatible with TB3 docks. Performance will be fine — you’ll just miss out on TB4’s extra bandwidth (useful only for high-speed external storage or external GPUs). If you’re buying a new dock, go with WD22TB4 to future-proof yourself.

Does the WD19S dock work with Mac?

Yes, if your Mac has USB-C. The WD19S is a universal USB-C dock with no Dell-specific firmware, so it works with any USB-C MacBook. However, you may not get native Dell Power Manager integration — charging will work, but battery monitoring may be generic. For best results on Mac, consider the dock hub compatibility guide which covers Mac-specific docks.

Is the WD19DCS worth it for a Precision laptop?

Only if your Precision has dual USB-C ports AND you run sustained high-power workloads (video rendering, 3D modelling, CUDA compute). The WD19DCS provides 210W vs. the WD22TB4’s 130W. For most users, even on Precision, 130W is sufficient — workstations are increasingly efficient. If you’re running CAD 8 hours a day and need to charge your laptop battery while working, the WD19DCS is worth the extra cost. Otherwise, save £100 and go with WD22TB4.

Can I daisy-chain Thunderbolt docks?

Yes, Thunderbolt 3 and 4 support daisy-chaining. You can plug one TB3/TB4 dock into another via the dock’s Thunderbolt output. This is useful if you want to expand beyond the dock’s native ports without using USB hubs. However, daisy-chaining can reduce bandwidth — if you need 8+ USB devices plus dual 4K displays, it’s better to invest in a higher-port-count dock or dedicated USB hub instead of chaining.

What if my Dell dock isn’t recognised?

First, try a different USB-C/Thunderbolt cable — sometimes the cable itself is faulty. Second, update your laptop’s Thunderbolt drivers via Device Manager or Dell’s website. Third, uninstall and reinstall Dell dock firmware using Dell’s firmware tool. If none of that works, your dock may have a hardware fault — contact Dell support for a replacement. Most Dell docks have a 1-year warranty covering manufacturing defects.

Which Dell dock is best for travel?

The UD22 Universal Dock is the most portable — it’s smaller and lighter than Thunderbolt docks, with USB-C connection so it works with any laptop. The WD19S is also compact. If you need Thunderbolt bandwidth, the WD22TB4 is still reasonable for occasional travel. Avoid the WD19DCS (large, heavy, dual cables) for travel — it’s a permanent desk fixture.

Where to Buy Dell Docks

Buy Dell WD22TB4 on Amazon UK — Current standard, recommended for most laptops.

Buy Dell WD19S on Amazon UK — Budget USB-C option, works with any USB-C laptop.

Buy Dell WD19TBS on Amazon UK — Older standard, still widely available and supported.

For other models (WD19DCS, UD22, WD25TB5), check Dell’s official store or specialist retailers — these are less common on general retail sites.
